PRODUCT FEATURES
- Includes a hanging bracket, 450mm
tungsten teeth auger, and hoses - 1-year warranty
- All prices exclude GST

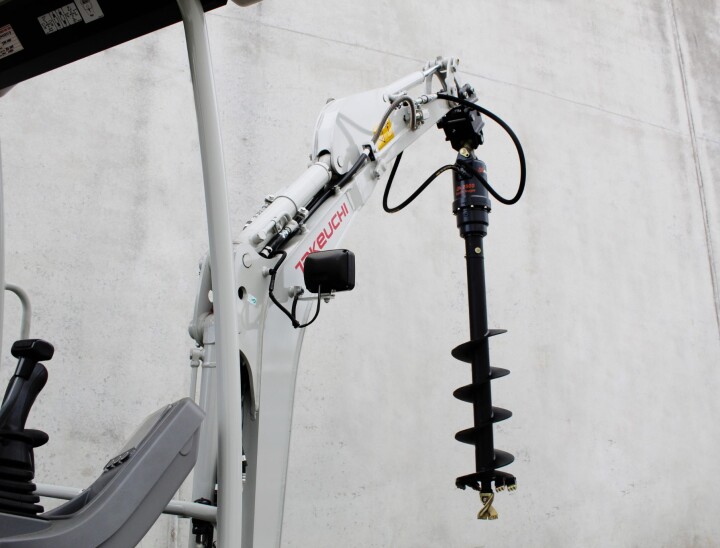

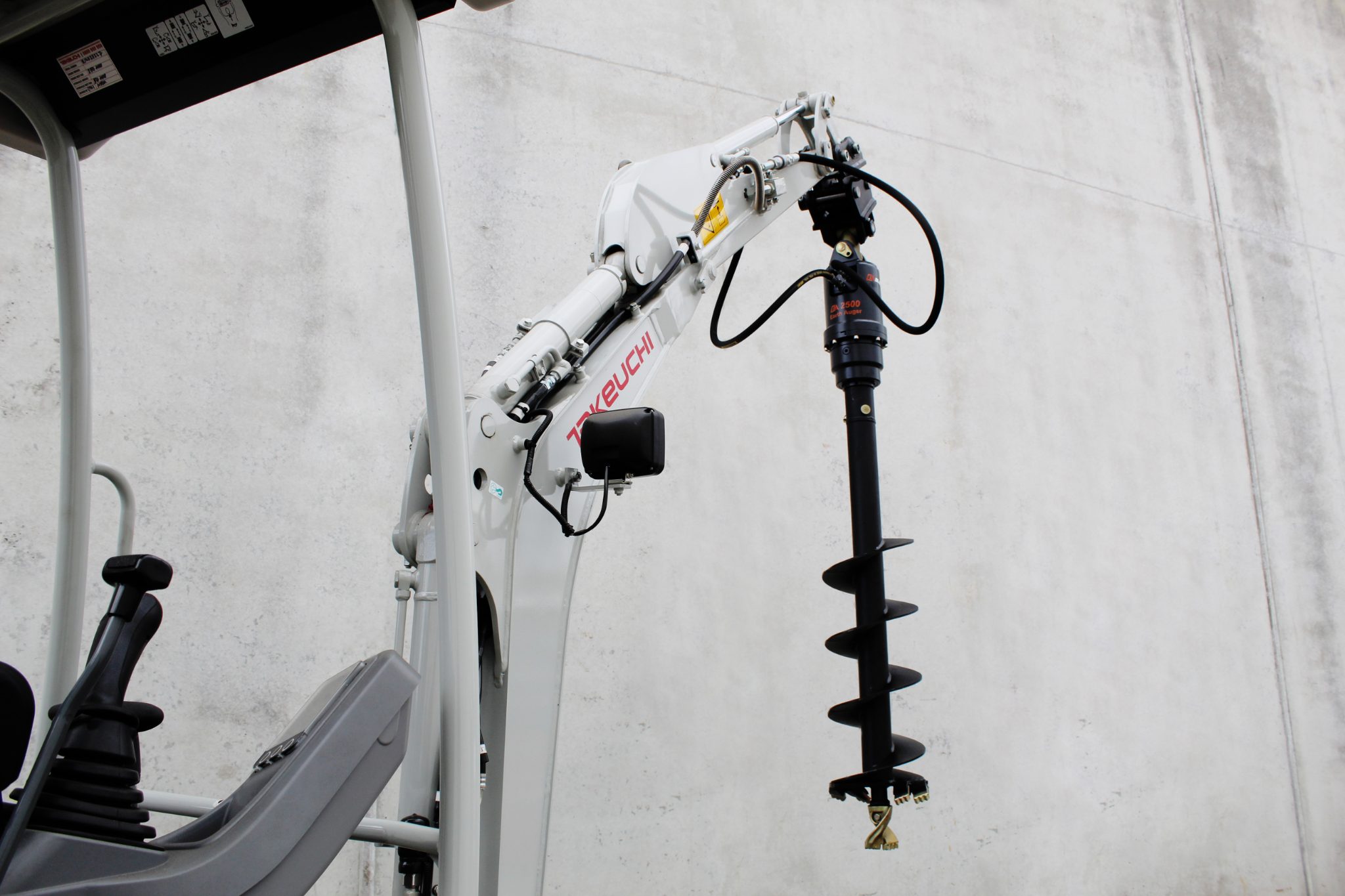

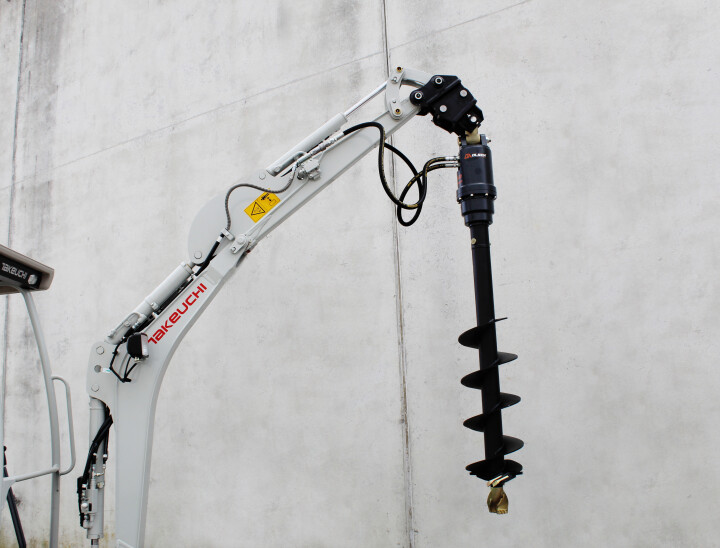

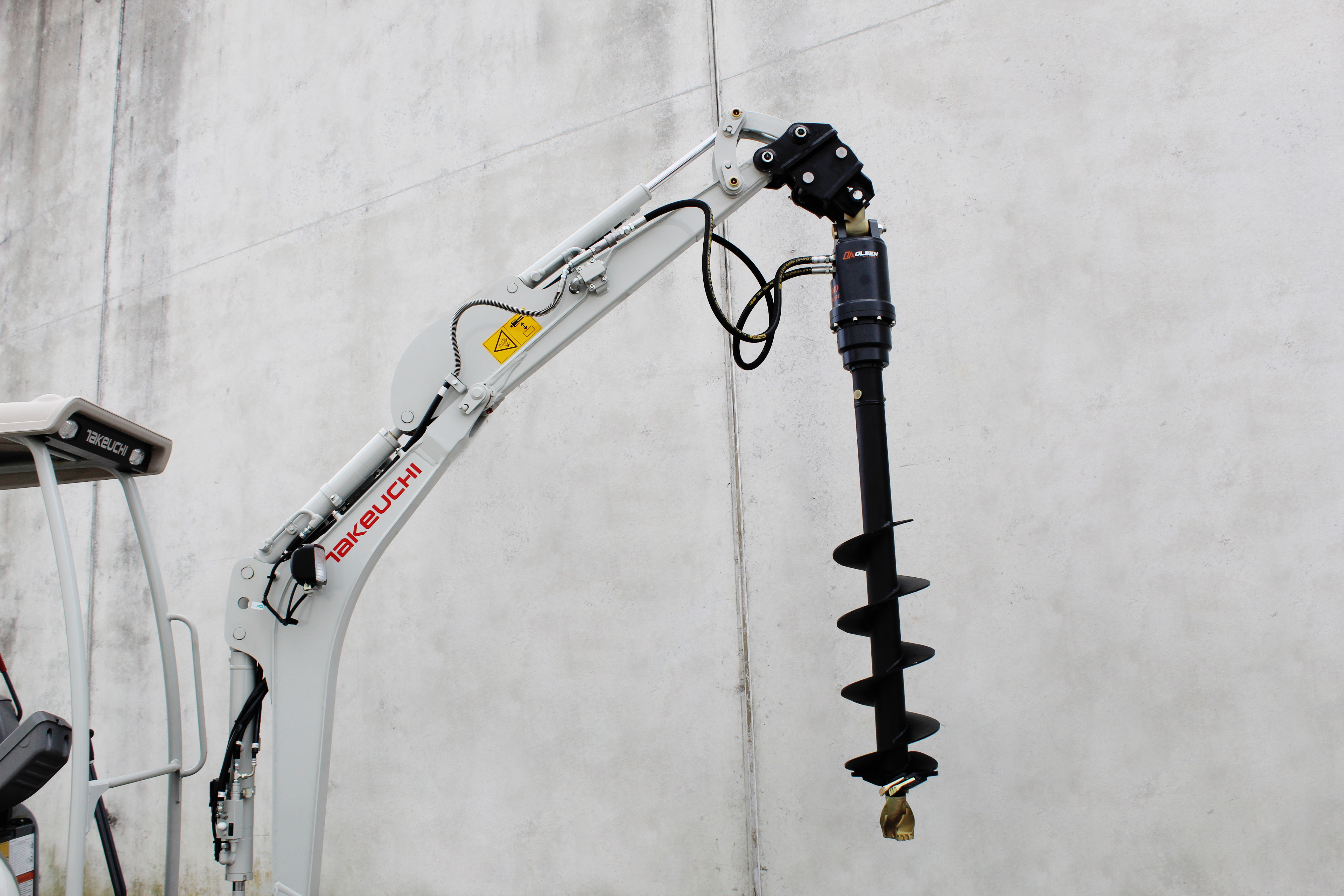

AUGER PACKAGE
AUGER PARTS: S4 AUGER HANGER
| PRODUCT NAME | PRODUCT CODE | CARRIER WEIGHT (T) | UNIT WEIGHT (kg) | PRICE (EX GST) |
| 30MM PINS Auger Hanger Double Pin | AHDP-01 | 1-1.9 | 15 | $550 |
| 35MM PINS Auger Hanger Double Pin | AHDP-02 | 2-2.9 | 20 | $550 |
| 38MM PINS Auger Hanger Double Pin | AHDP-023 | 3-3.9 | 25 | $650 |
| 40MM PINS Auger Hanger Double Pin | AHDP-03 | 3-3.9 | 25 | $650 |
AUGER PARTS: S4 AUGER DRIVE - 50.8MM HEX DRIVE
| PRODUCT NAME | PRODUCT CODE | CARRIER WEIGHT (T) | WORKING PRESSURE (bar) | WORKING OIL FLOW (l/min) | UNIT WEIGHT (kg) | PRICE (EX GST) |
| REA2000 Auger Drive |
OAARAD-2000 | 1-2.5 | 70-205 | 23-53 | 54 | $2,390 |
| REA2500 Auger Drive |
OAARAD-2500 | 1.5-3 | 70-205 | 30-61 | 54 | $2,490 |
| REA3500 Auger Drive |
OAARAD-3500 | 2.5-4.5 | 80-240 | 30-68 | 71 | $3,080 |
| REA4500 Auger Drive |
OAARAD-4500 | 3-5 | 80-240 | 38-76 | 71 | $3,280 |
AUGER PARTS: S4 AUGER BITS - 50.8MM HEX - TUNGSTEN TEETH
| PRODUCT CODE | PRODUCT NAME | DIAMETER (mm) | LENGTH (mm) | FLIGHT THICKNESS (mm) | UNIT WEIGHT (kg) | PRICE (EX GST) |
| AUGER BIT 100mm | OAARTB-100-50.8MMHEX | 100 | 1200 | 6 | 13 | $650 |
| AUGER BIT 150mm | OAARTB-150-50.8MMHEX | 150 | 1200 | 6 | 20 | $690 |
| AUGER BIT 200mm | OAARTB-200-50.8MMHEX | 200 | 1200 | 6 | 25 | $750 |
| AUGER BIT 250mm | OAARTB-250-50.8MMHEX | 250 | 1200 | 6 | 30 | $790 |
| AUGER BIT 300mm | OAARTB-300-50.8MMHEX | 300 | 1200 | 6 | 37 | $850 |
| AUGER BIT 350mm | OAARTB-350-50.8MMHEX | 350 | 1200 | 6 | 40 | $900 |
| AUGER BIT 400mm | OAARTB-400-50.8MMHEX | 400 | 1200 | 6 | 45 | $960 |
| AUGER BIT 450mm | OAARTB-450-50.8MMHEX | 450 | 1200 | 6 | 48 | $1,070 |
| AUGER BIT 500mm | OAARTB-500-50.8MMHEX | 500 | 1200 | 6 | 53 | $1,190 |
| AUGER BIT 600mm | OAARTB-600-50.8MMHEX | 600 | 1200 | 6 | 58 | $1,350 |
| AUGER BIT 900mm | OAARTB-900-50.8MMHEX | 900 | 1200 | 6 | 98 | $2,000 |
AUGER PARTS: S4 AUGER EXTENSION - 50.8MM HEX
| PRODUCT NAME | PRODUCT CODE | LENGTH (mm) | UNIT WEIGHT (kg) | PRICE (EX GST) |
| AUGER EXTENSION 600mm | OAARAE-600-50.8MMHEX | 600 | 12.5 | $330 |
| AUGER EXTENSION 1000mm | OAARAE-1000-50.8MMHEX | 1000 | 17.2 | $390 |
| AUGER EXTENSION 1000mm-2000mm *extendible |
OAARAE-1020-50.8MMHEX | 1000-2000 | 50 | $1,200 |
AUGER PARTS: S5 AUGER HANGER
| PRODUCT NAME | PRODUCT CODE | CARRIER WEIGHT (T) | UNIT WEIGHT (kg) | PRICE (EX GST) |
| 50MM PINS Auger Hanger Double Pin | AHDP-08 | 6-9.9 | 50 | $650 |
AUGER PARTS: S5 AUGER DRIVE - 75MM SQUARE HUB
| PRODUCT NAME | PRODUCT CODE | CARRIER WEIGHT (T) | WORKING PRESSURE (bar) | WORKING OIL FLOW (l/min) | UNIT WEIGHT (kg) | PRICE (EX GST) |
| REA5000 Auger Drive |
OAARAD-5000 | 4.5-7 | 80-240 | 38-76 | 108 | $4,300 |
| REA6000 Auger Drive |
OAARAD-6000 | 5-7 | 80-240 | 45-83 | 108 | $4,430 |
| REA7000 Auger Drive |
OAARAD-7000 | 7-10 | 80-240 | 61-121 | 112 | $4,650 |
| REA8000 Auger Drive |
OAARAD-8000 | 8-12 | 80-240 | 61-136 | 115 | $5,250 |
AUGER PARTS: S5 AUGER BITS - 75MM SQUARE HUB - TUNGSTEN TEETH
| PRODUCT NAME | PRODUCT CODE | DIAMETER (mm) | LENGTH (mm) | FLIGHT THICKNESS (mm) | UNIT WEIGHT (kg) | PRICE (EX GST) |
| AUGER BIT 300mm | OAARTB-300-S5-75MM | 300 | 1500 | 8 | 65 | $1,330 |
| AUGER BIT 350mm | OAARTB-350-S5-75MM | 350 | 1500 | 8 | 66 | $1,500 |
| AUGER BIT 450mm | OAARTB-450-S5-75MM | 450 | 1500 | 8 | 82 | $1,650 |
| AUGER BIT 600mm | OAARTB-600-S5-75MM | 600 | 1500 | 8 | 99 | $2,200 |
| AUGER BIT 900mm | OAARTB-900-S5-75MM | 900 | 1500 | 8 | 150 | $3,100 |
| AUGER BIT 1200mm | OAARTB-1200-S5-75MM | 1200 | 1500 | 8 | 220 | $4,600 |
AUGER PARTS: S5 AUGER EXTENSION - 75MM SQUARE HUB
| PRODUCT NAME | PRODUCT CODE | LENGTH (mm) | UNIT WEIGHT (kg) | PRICE (EX GST) |
| AUGER EXTENSION 1000mm | OAARAE-1000-S5-75MM | 1000 | 36 | $660 |
| AUGER EXTENSION 2000mm | OAARAE-2000-S5-75MM | 2000 | 54 | $770 |
| AUGER EXTENSION 2000mm-4000mm *extendible |
OAARAE-2040-S5-75MM | 2000-4000 | 115 | $1,500 |
AUGER PARTS: S6 AUGER HANGER
| PRODUCT NAME | PRODUCT CODE | CARRIER WEIGHT (T) | UNIT WEIGHT (kg) | PRICE (EX GST) |
| 60/65MM PINS Auger Hanger Double Pin | AHDP-12 | 10-14.9 | 80 | $1,200 |
| 80MM PINS Auger Hanger Double Pin | AHDP-20 | 15-23.9 | 130 | $1,400 |
