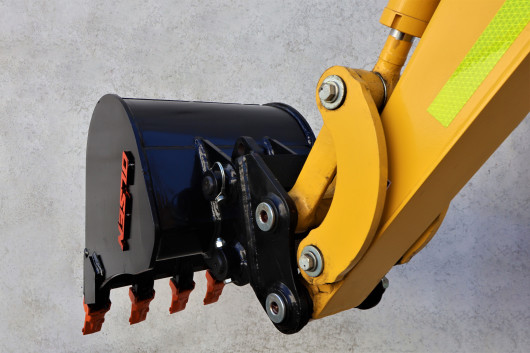

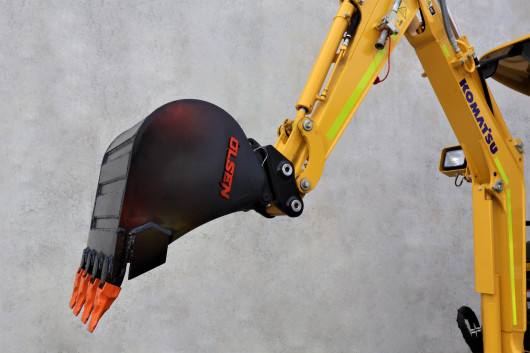

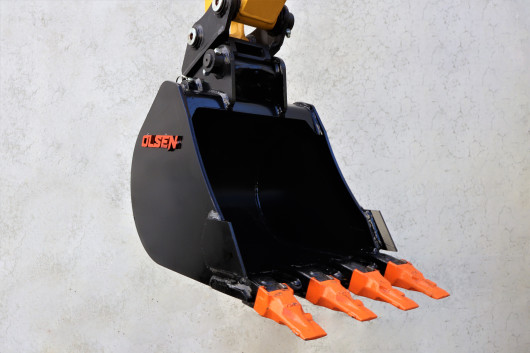

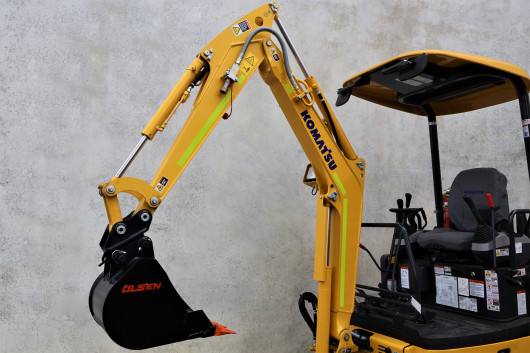

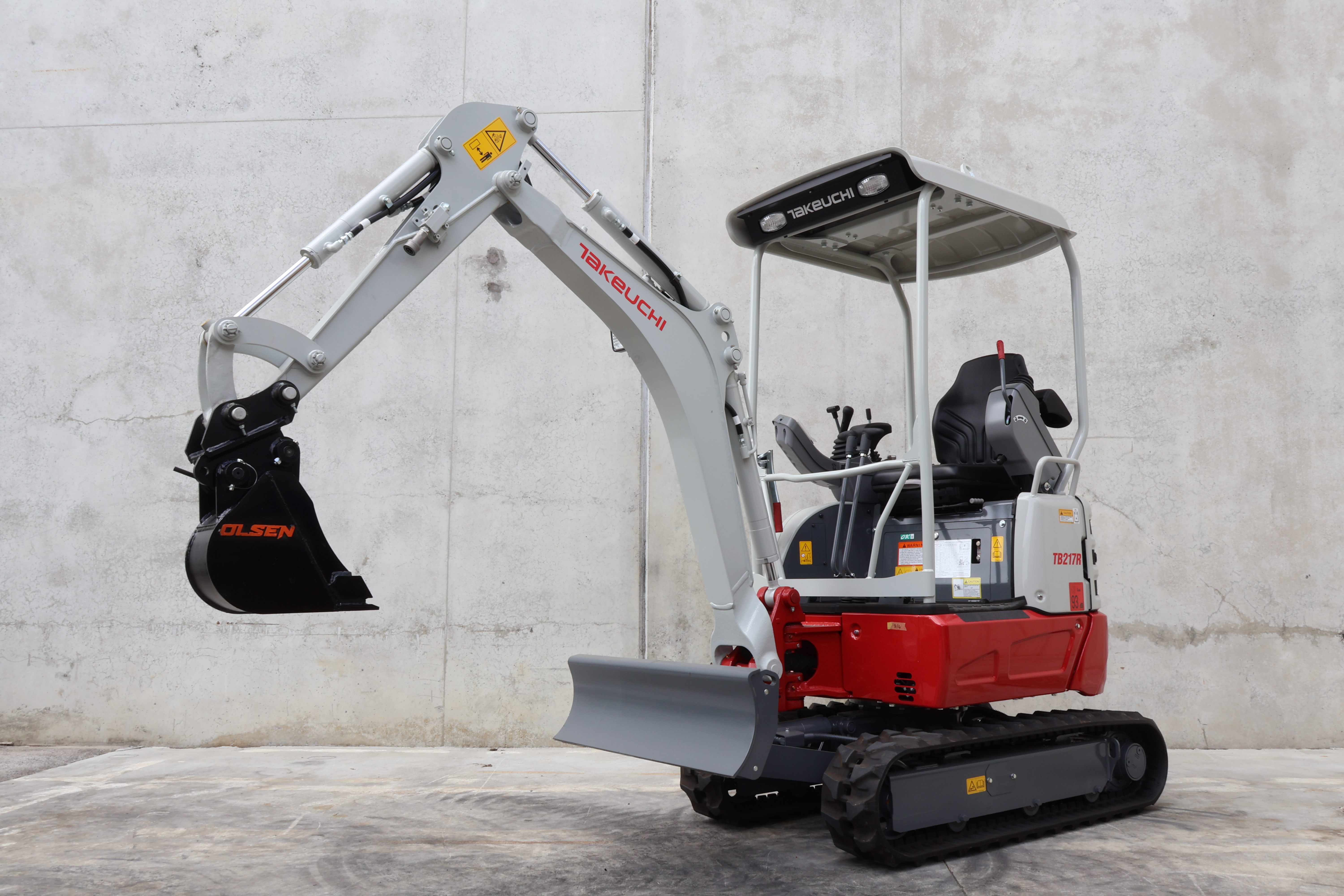

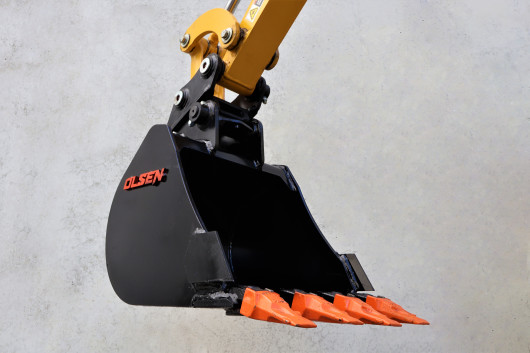

DIG BUCKET

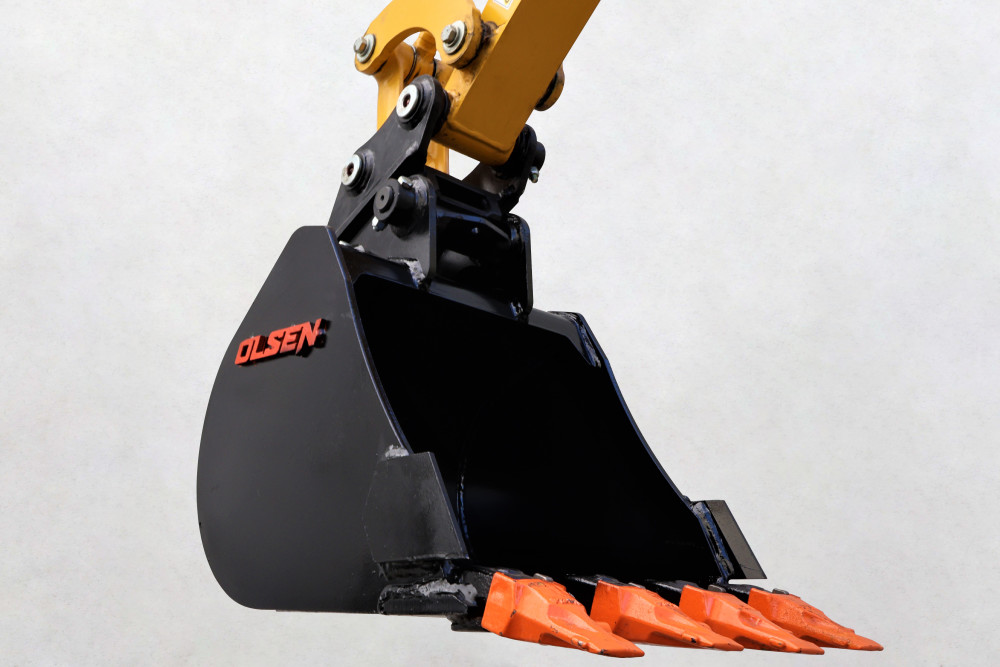

Dig Bucket 01

PRODUCT FEATURES

  • Pins are included as a standard to suit the intended excavator
  • Integrated side cutters
  • Replaceable teeth
  • 1-year warranty
  • All prices exclude GST
OADBNT-01-200
$495
excluding GST

1-1.9T DIG BUCKET
200MM (NO TEETH)

Product code OADBNT-01-200
Weight (kg) 26
Width (mm) 200
Capacity struck (m3) 0.016
Capacity heaped (m3) 0.018
OADBNT-01-300
$572
excluding GST

1-1.9T DIG BUCKET
300MM (NO TEETH)

Product code OADBNT-01-300
Weight (kg) 32
Width (mm) 300
Capacity struck (m3) 0.025
Capacity heaped (m3) 0.030
OADB-01-200
$550
excluding GST

1-1.9T DIG BUCKET
200MM

Product code OADB-01-200
Weight (kg) 28
Width (mm) 200
Capacity struck (m3) 0.016
Capacity heaped (m3) 0.018
OADB-01-300
$627
excluding GST

1-1.9T DIG BUCKET
300MM

Product code OADB-01-300
Weight (kg) 34
Width (mm) 300
Capacity struck (m3) 0.025
Capacity heaped (m3) 0.030
OADB-01-400
$693
excluding GST

1-1.9T DIG BUCKET
400MM

Product code OADB-01-400
Weight (kg) 42
Width (mm) 400
Capacity struck (m3) 0.030
Capacity heaped (m3) 0.040
OADB-02-300
$946
excluding GST

2-2.9T DIG BUCKET
300MM

Product code OADB-02-300
Weight (kg) 64
Width (mm) 300
Capacity struck (m3) 0.034
Capacity heaped (m3) 0.042
OADB-02-400
$1,012
excluding GST

2-2.9T DIG BUCKET
400MM

Product code OADB-02-400
Weight (kg) 70
Width (mm) 400
Capacity struck (m3) 0.050
Capacity heaped (m3) 0.059
OADB-02-450
$1,045
excluding GST

2-2.9T DIG BUCKET
450MM

Product code OADB-02-450
Weight (kg) 80
Width (mm) 450
Capacity struck (m3) 0.054
Capacity heaped (m3) 0.067
OADB-02-600
$1,243
excluding GST

2-2.9T DIG BUCKET
600MM

Product code OADB-02-600
Weight (kg) 94
Width (mm) 600
Capacity struck (m3) 0.079
Capacity heaped (m3) 0.093
OADB-03-300
$957
excluding GST

3-3.9T DIG BUCKET
300MM

Product code OADB-03-300
Weight (kg) 66
Width (mm) 300
Capacity struck (m3) 0.034
Capacity heaped (m3) 0.042
OADB-03-400
$1,023
excluding GST

3-3.9T DIG BUCKET
400MM

Product code OADB-03-400
Weight (kg) 75
Width (mm) 400
Capacity struck (m3) 0.050
Capacity heaped (m3) 0.059
OADB-03-450
$1,056
excluding GST

3-3.9T DIG BUCKET
450MM

Product code OADB-03-450
Weight (kg) 85
Width (mm) 450
Capacity struck (m3) 0.054
Capacity heaped (m3) 0.067
OADB-03-600
$1,254
excluding GST

3-3.9T DIG BUCKET
600MM

Product code OADB-03-600
Weight (kg) 99
Width (mm) 600
Capacity struck (m3) 0.079
Capacity heaped (m3) 0.093
OADB-05-300
$1,199
excluding GST

4-5.9T DIG BUCKET
300MM

Product code OADB-05-300
Weight (kg) 100
Width (mm) 300
Capacity struck (m3) 0.065
Capacity heaped (m3) 0.080



OADB-05-400
$1,265
excluding GST

4-5.9T DIG BUCKET
400MM

Product code OADB-05-400
Weight (kg) 118
Width (mm) 450
Capacity struck (m3) 0.085
Capacity heaped (m3) 0.110
OADB-05-450
$1,298
excluding GST

4-5.9T DIG BUCKET
450MM

Product code OADB-05-450
Weight (kg) 128
Width (mm) 450
Capacity struck (m3) 0.100
Capacity heaped (m3) 0.123
OADB-05-600
$1,463
excluding GST

4-5.9T DIG BUCKET
600MM

Product code OADB-05-600
Weight (kg) 140
Width (mm) 600
Capacity struck (m3) 0.140
Capacity heaped (m3) 0.170
OADB-08-300
$1,628
excluding GST

6-9.9T DIG BUCKET
300MM

Product code OADB-08-300
Weight (kg) 124
Width (mm) 300
Capacity struck (m3) 0.080
Capacity heaped (m3) 0.095
OADB-08-400
$1,727
excluding GST

6-9.9T DIG BUCKET
400MM

Product code OADB-08-400
Weight (kg) 132
Width (mm) 400
Capacity struck (m3) 0.110
Capacity heaped (m3) 0.130
OADB-08-450
$1,760
excluding GST

6-9.9T DIG BUCKET
450MM

Product code OADB-08-450
Weight (kg) 166
Width (mm) 450
Capacity struck (m3) 0.120
Capacity heaped (m3) 0.150
OADB-08-600
$1,925
excluding GST

6-9.9T DIG BUCKET
600MM

Product code OADB-08-600
Weight (kg) 174
Width (mm) 600
Capacity struck (m3) 0.170
Capacity heaped (m3) 0.200
OADB-12-400
$3,025
excluding GST

10-14.9T DIG BUCKET
400MM

Product code OADB-12-400
Weight (kg) 316
Width (mm) 400
Capacity struck (m3) 0.190
Capacity heaped (m3) 0.220
OADB-12-600
$3,245
excluding GST

10-14.9T DIG BUCKET
600MM

Product code OADB-12-600
Weight (kg) 354
Width (mm) 600
Capacity struck (m3) 0.300
Capacity heaped (m3) 0.340
OADB-12-900
$3,641
excluding GST

10-14.9T DIG BUCKET
900MM

Product code OADB-12-900
Weight (kg) 420
Width (mm) 900
Capacity struck (m3) 0.440
Capacity heaped (m3) 0.520
OADB-12-1100
$3,960
excluding GST

10-14.9T DIG BUCKET
1100MM

Product code OADB-12-1100
Weight (kg) 500
Width (mm) 1100
Capacity struck (m3) 0.550
Capacity heaped (m3) 0.650
OADB-20-400
$3,498
excluding GST

15-23.9T DIG BUCKET
400MM

Product code OADB-20-400
Weight (kg) 496
Width (mm) 400
Capacity struck (m3) 0.250
Capacity heaped (m3) 0.300
OADB-20-600
$3,696
excluding GST

15-23.9T DIG BUCKET
600MM

Product code OADB-20-600
Weight (kg) 548
Width (mm) 600
Capacity struck (m3) 0.380
Capacity heaped (m3) 0.450
OADB-20-1100
$5,280
excluding GST

15-23.9T DIG BUCKET
1100MM

Product code OADB-20-1100
Weight (kg) 780
Width (mm) 1100
Capacity struck (m3) 0.750
Capacity heaped (m3) 0.900

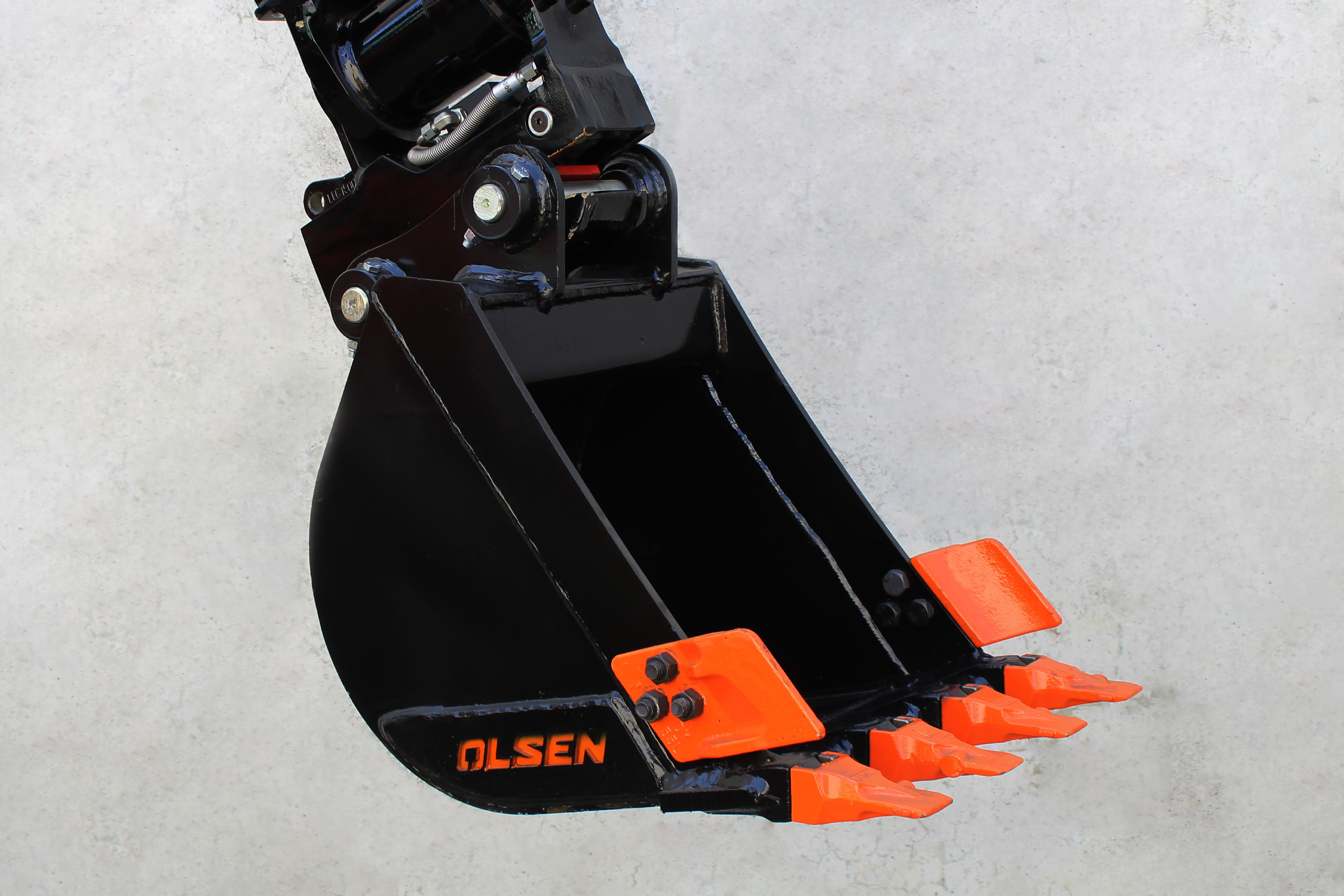

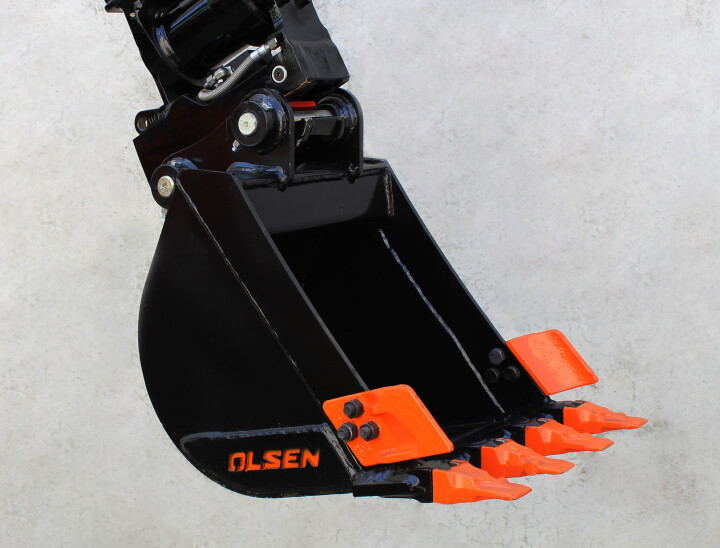

Main zoom icon

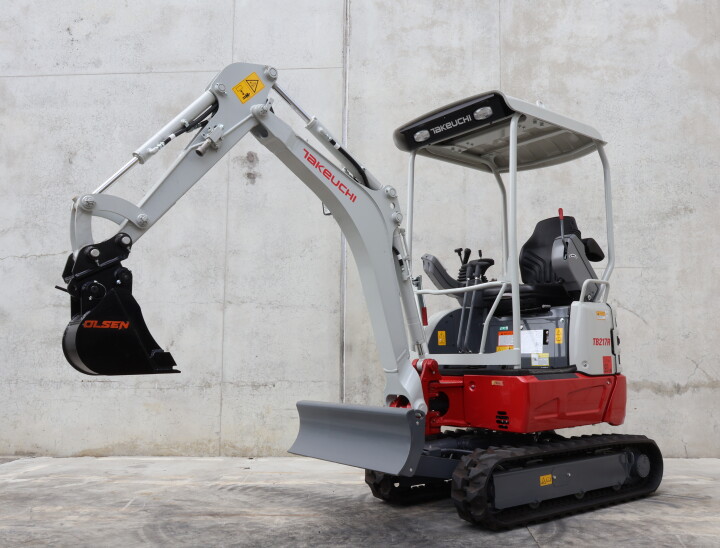

IMG 1061 zoom icon

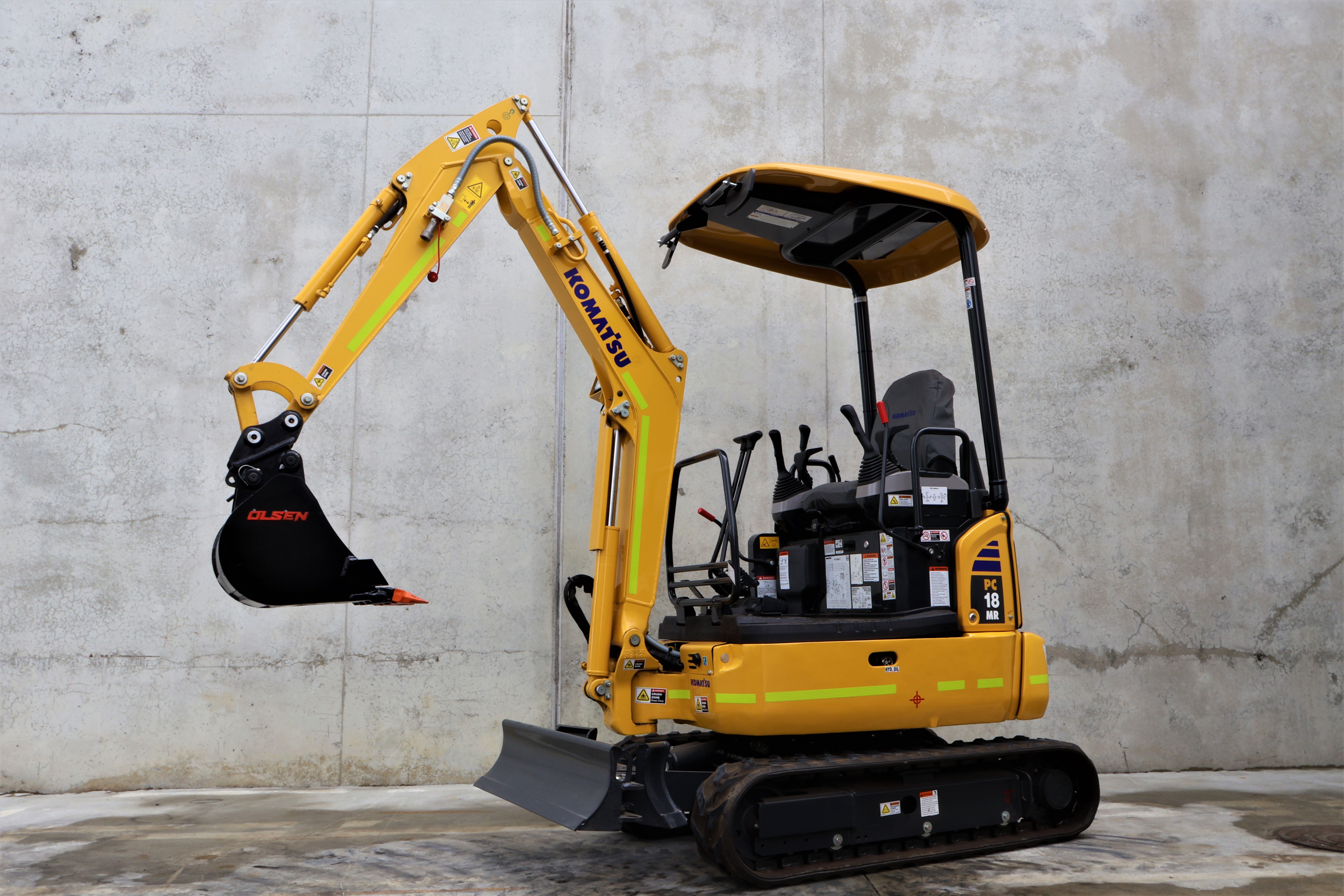

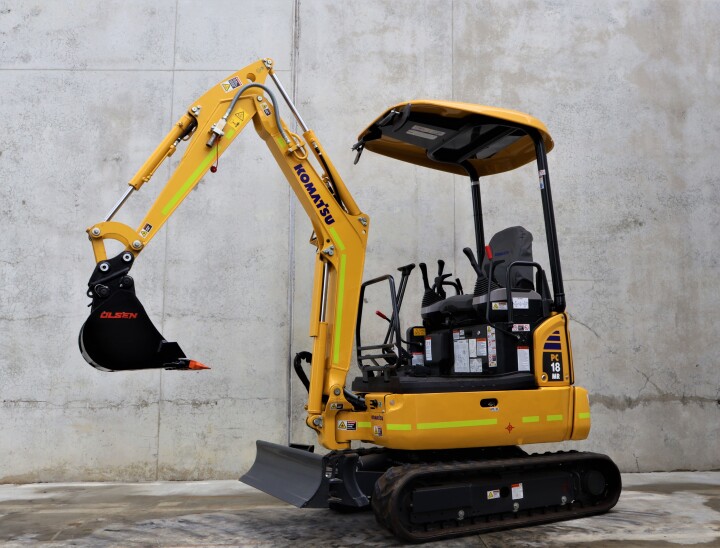

IMG 0799 zoom icon
