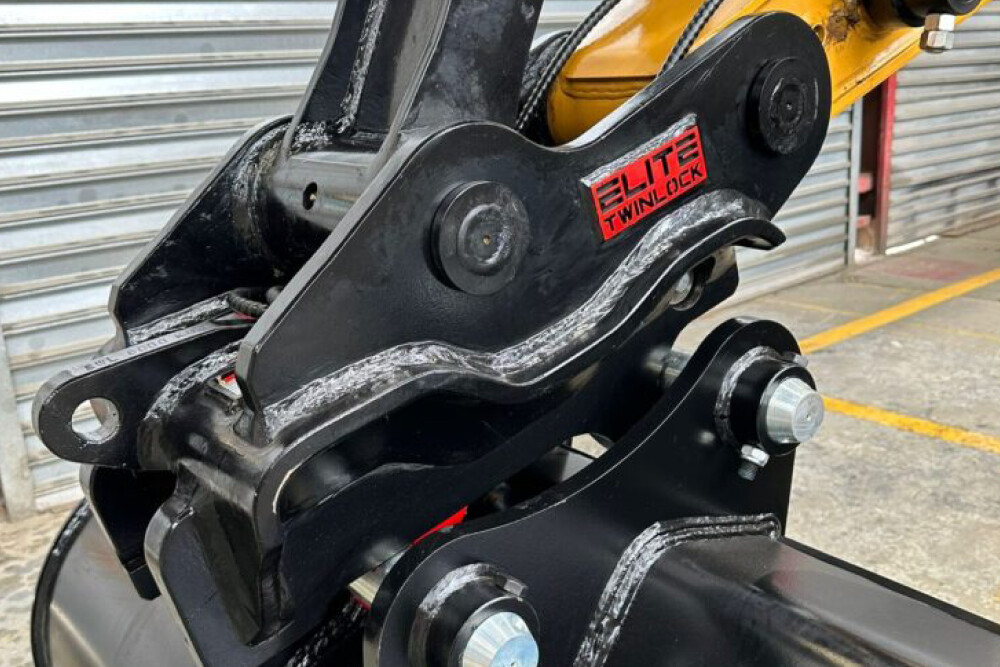

Elite TwinLOCK Hitch

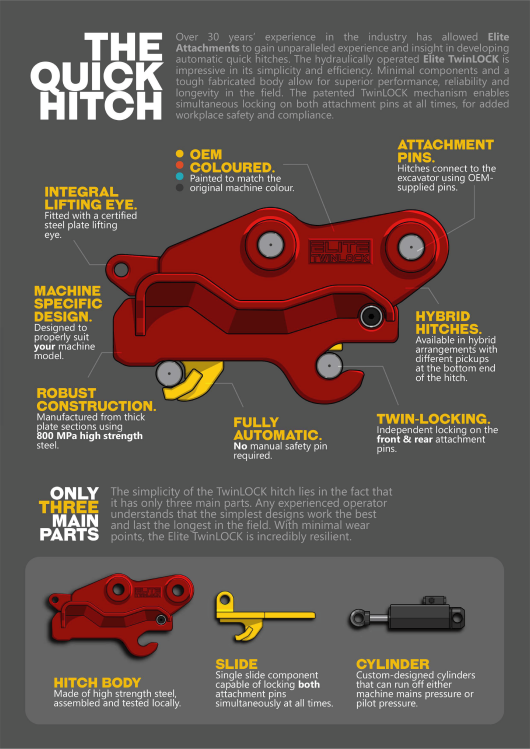

Elite TwinLOCK Standard Quick Hitch

-Heavy duty central lifting eye.
-Largest pin centre pick up range due to the simple, long-travel cylinders.
-Each quick hitch is specifically designed to match up to the machine linkage, ensuring for a tighter, better fit and improved longevity for the attachment.
-Fully automatic, no manual safety pin required.

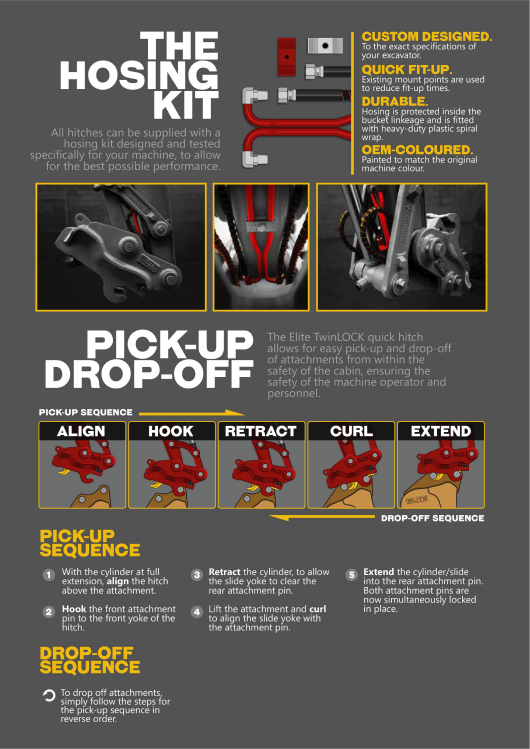

*Optional hydraulic hosing kit.

EL15TL-30-GEN

$2,888 + GST

1.7T TWINLOCK HITCH

Product code	EL15TL-30-GEN
Weight (kg)	18.5
Centers (mm)	OEM
Dipper width (mm)	OEM
Pin diameter (mm)	30

EL22TL-35-GEN

$3,493 + GST

2.5T TWINLOCK HITCH

Product code	EL22TL-35-GEN
Weight (kg)	24.9
Centers (mm)	163-200
Dipper width (mm)	118
Pin diameter (mm)	35

EL35TL-38-GEN

$3,816 + GST

3.5T TWINLOCK HITCH

Product code	EL35TL-38-GEN
Weight (kg)	32.7
Centers (mm)	169-218
Dipper width (mm)	120
Pin diameter (mm)	40

EL55TL-45-GEN

$4,125 + GST

5.5T TWINLOCK HITCH

Product code	EL55TL-45-GEN
Weight (kg)	53.1
Centers (mm)	216-287
Dipper width (mm)	140
Pin diameter (mm)	45

EL85TL-50-GEN

$4,840 + GST

8.5T TWINLOCK HITCH

Product code	EL85TL-50-GEN
Weight (kg)	79.2
Centers (mm)	265-320
Dipper width (mm)	178
Pin diameter (mm)	50

EL140TL-65-GEN

$6,353 + GST

13T TWINLOCK HITCH

Product code	EL140TL-65-GEN
Weight (kg)	138.9
Centers (mm)	(60) 344-406 \| (65) 353-423
Dipper width (mm)	218/248
Pin diameter (mm)	60/65

EL170TL-80-GEN

$7,941 + GST

16T TWINLOCK HITCH

Product code	EL170TL-80-GEN
Weight (kg)	276.8
Centers (mm)	380-470
Dipper width (mm)	290
Pin diameter (mm)	80

EL200TL-80-GEN

$8,663 + GST

20T TWINLOCK HITCH

Product code	EL200TL-80-GEN
Weight (kg)	283.6
Centers (mm)	425-515
Dipper width (mm)	300
Pin diameter (mm)	80

EL250TL-90-GEN

$10,478 + GST

25T TWINLOCK HITCH

Product code	EL250TL-90-GEN
Weight (kg)	332
Centers (mm)	460-535
Dipper width (mm)	320/374
Pin diameter (mm)	90

EL350TL-90-GEN

$12,705 + GST

35T TWINLOCK HITCH

Product code	EL350TL-90-GEN
Weight (kg)	407.6
Centers (mm)	457-568
Dipper width (mm)	320/374
Pin diameter (mm)	90

EL350TL-100-GEN

$12,705 + GST

35T TWINLOCK HITCH

Product code	EL350TL-100-GEN
Weight (kg)	485.2
Centers (mm)	530-620
Dipper width (mm)	400
Pin diameter (mm)	100
