Elite Attachments Couplers

Elite TwinLOCK Standard Quick Hitch

  • Fully automatic- No manual safety pin required
  • Twin-locking- Independent locking on the front and rear attachment pins
  • Integral lifting eye- Fitted with a certified steel plate lifting eye



Elite RotaLOCK Tilting Quick Hitch

  • Rotary actuator- Tilt attachments up to 90 degrees on either side
  • Fully automatic- No manual safety pin required
  • Twin-locking- Independent locking on the front and rear attachment pins
  • Integral lifting eye- Fitted with a certified steel plate lifting eye

ELITE TwinLOCK Standard Quick hitch price list

Product code Product name Tonnage Pin diameter (mm) Hitch base width (mm) Pin centre pick up range (mm) Price
EL15TL-30-GEN TwinLOCK Hitch 1.7 Ton 30 OEM OEM $2,625 + GST
EL22TL-35-GEN TwinLOCK Hitch 2.5 Ton 35 118 163-200 $3,375 + GST
EL35TL-38-GEN TwinLOCK Hitch 3.5 Ton 40 120 169-218 $3,688 + GST
EL55TL-45-GEN TwinLOCK Hitch 5.5 Ton 45 140 216-287 $4,063 + GST
EL85TL-50-GEN TwinLOCK Hitch 8.5 Ton 50 178 265-320 $4,781 + GST
EL140TL-65-GEN TwinLOCK Hitch 13 Ton 60/65 218/248 (60) 344-406 | (65) 353-423 $6,470 + GST
EL170TL-80-GEN TwinLOCK Hitch 16 Ton 80 290 380-470 $7,625 + GST
EL200TL-80-GEN TwinLOCK Hitch 20 Ton 80 300 425-515 $8,250 + GST
EL250TL-90-GEN TwinLOCK Hitch 25 Ton 90 320/374 460-535 $10,413 + GST
EL350TL-90-GEN TwinLOCK Hitch 35 Ton 90 320/374 457-568 $13,175 + GST
EL350TIL-100-GEN TwinLOCK Hitch 35 Ton 100 400 530-620 $13,281 + GST



ELITE RotaLOCK Tilting Quich Hitch price list

Product code Product name Tonnage Pin diameter (mm) Hitch base width (mm) Pin centre pick up range (mm) Price
EL15RL-30-GEN RotaLOCK Hitch 1.7 Ton 30 OEM OEM $6,875 + GST
EL20RL-35-GEN RotaLOCK Hitch 2 Ton 35 118 163-200 $9,250 + GST
EL22RL-38-GEN RotaLOCK Hitch 2.5 Ton 35,38,40 118 169-218 $10,375 + GST
EL35RL-38-GEN RotaLOCK Hitch 3.5 Ton 40 120 169-218 $10,813 + GST
EL55RL-50-GEN RotaLOCK Hitch 5.5 Ton 45 140 216-287 $12,688 + GST
EL85RL-50-GEN RotaLOCK Hitch 8.5 Ton 50 178 265-320 $15,125 + GST
EL140RL-65-GEN RotaLOCK Hitch 13 Ton 60/65 218/248 (60) 344-406 | (65) 353-423 $19,563 + GST
EL170RL-80-GEN RotaLOCK Hitch 16 Ton 80 290 380-470 $24,750 + GST
EL200RL-80-GEN RotaLOCK Hitch 20 Ton 80 300 425-515 $28,188 + GST
EL250RL-90-GEN RotaLOCK Hitch 25 Ton 90 320/374 460-535 $33,000 + GST
EL350RL-90-GEN RotaLOCK Hitch 35 Ton 90 320/374 457-568 $39,188 + GST
EL350RL-100-GEN RotaLOCK Hitch 35 Ton 100 400 530-620 $41,938 + GST

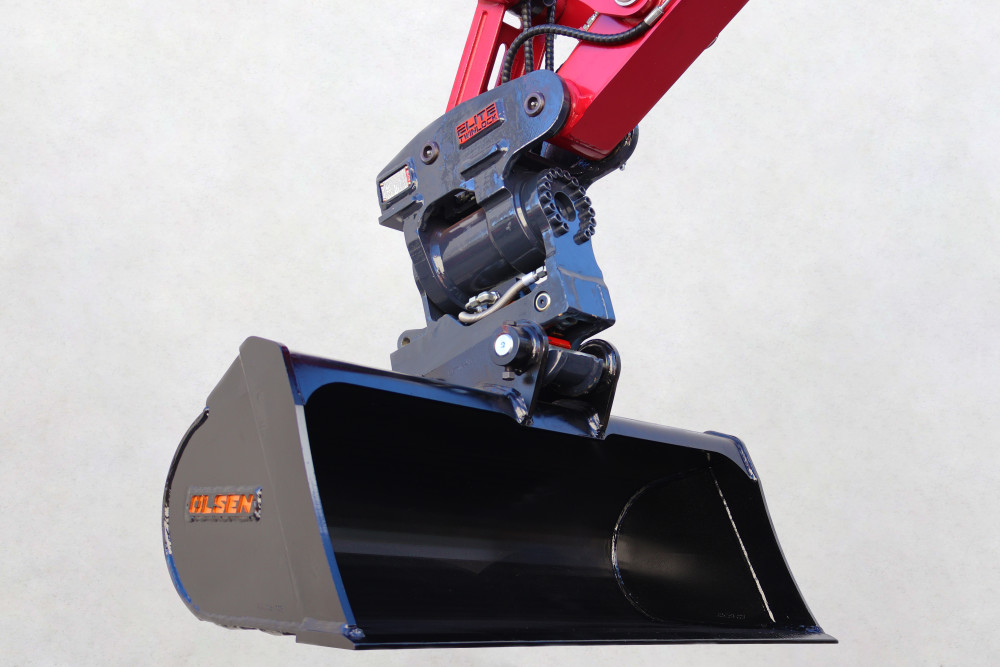

Untitled 1 01

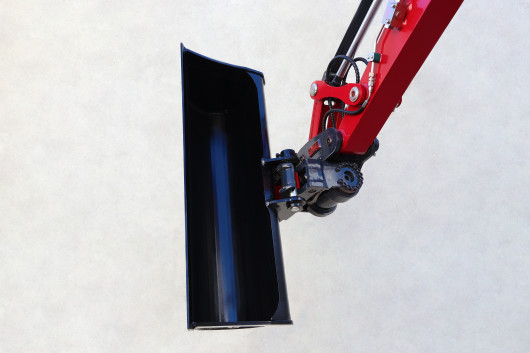

IMG 2420.JPG

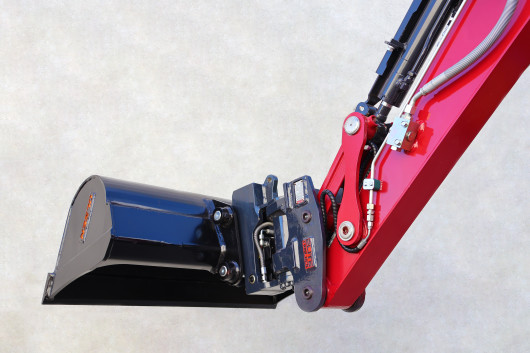

IMG 2429.JPG

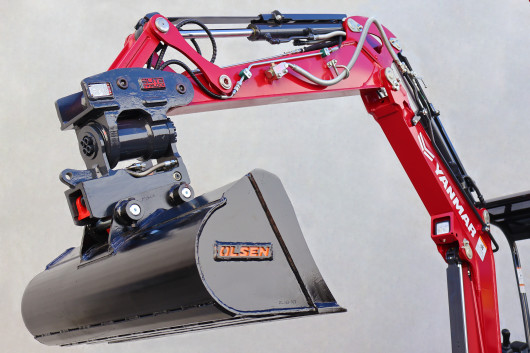

IMG 2460.JPG

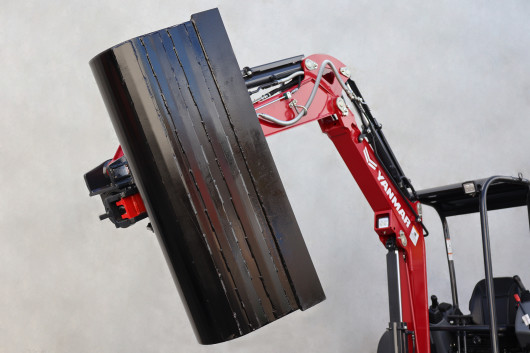

IMG 2472.JPG

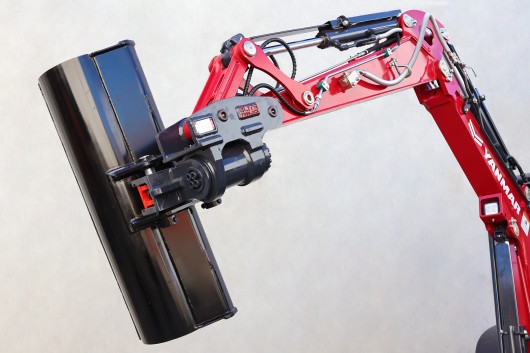

IMG 2477.JPG

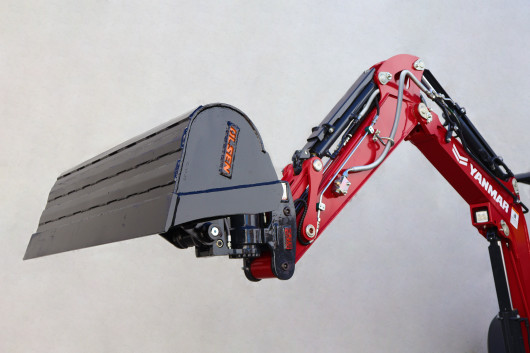

IMG 2483.JPG
